MetalCloak Jeep Lock-N-Load Radius Long-Arm Suspension and Upgrade Kits

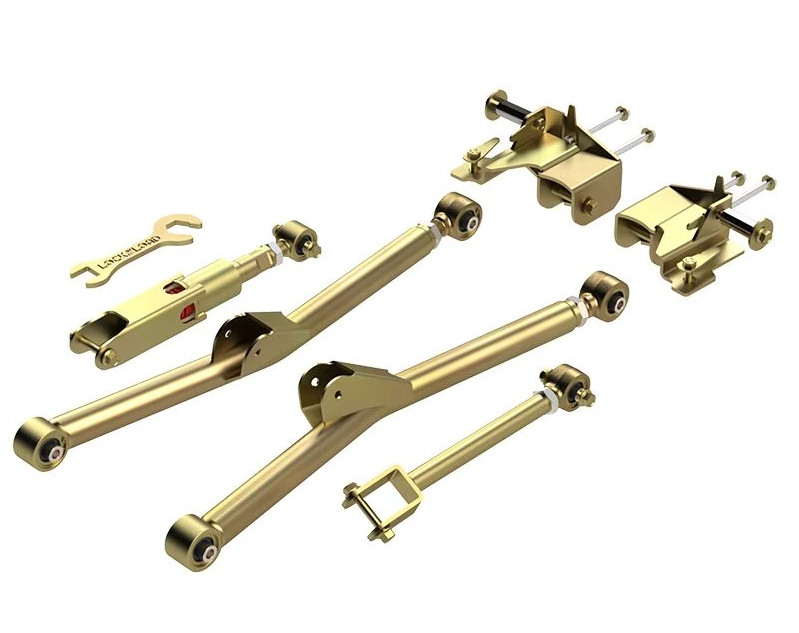

MetalCloak Lock-N-Load Long Arm Suspension
Jeep Lock-N-Load Radius Long-Arm Suspension

The Lock-N-Load "Bolt-On" FRONT Long Arm System offers amazing performance with a bolt on application, featuring patented technology removing radius arm bind and unleashes the flex in your Jeep.

  • Hi-Misalignment Vibration Dampening Duroflex Joints
  • Lock-N-Load
  • Upper Front Radius Arm
  • 2 Lower Rear Radius Long Arms
  • Lower Frame Mount 1/4" Steel Control Arm Brackets
  • Gold Zinc Protection
  • All Required Hardware
  • Made in the USA

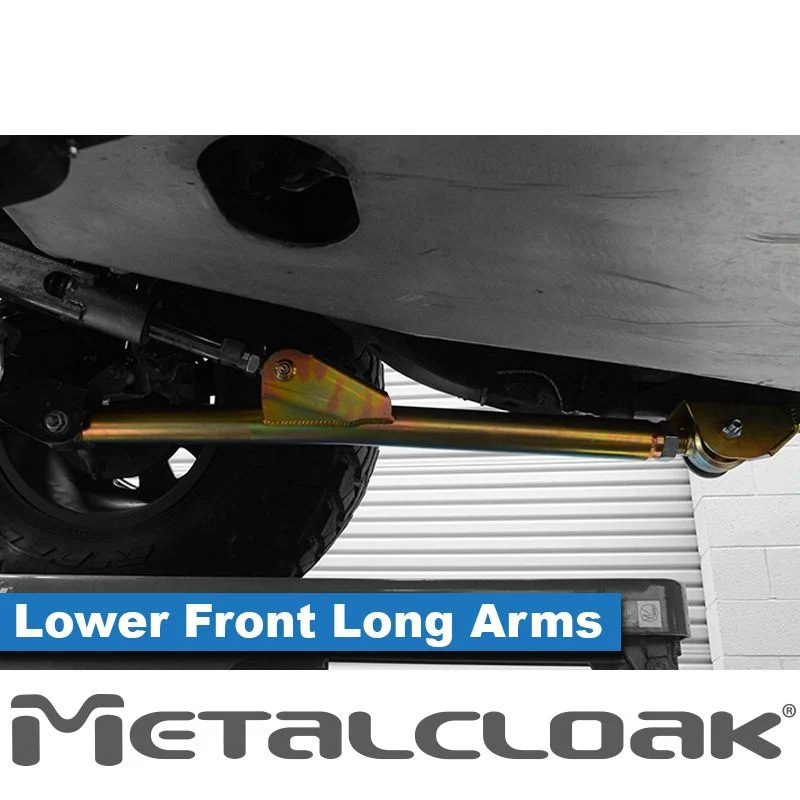

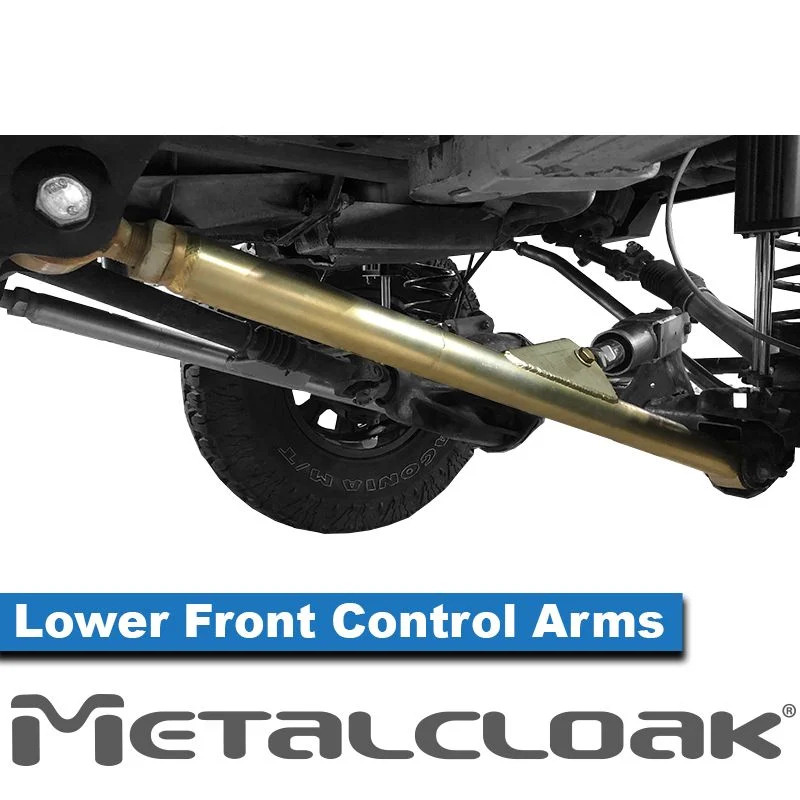

This is what you want to change out your front mid-arm suspension to front long arms; MetalCloak provides you with everything you need to get the job done. Thick 2.0 DOM .25 (1/4) wall steel lower control arms provide strength that can take abuse with forged threaded ends for the ultimate in durability.

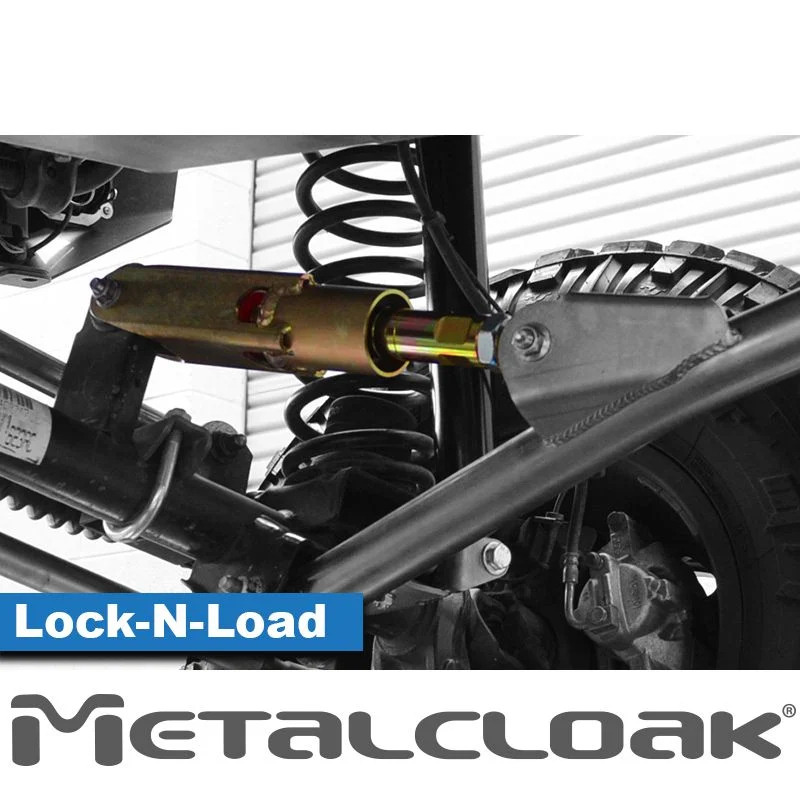

Remove the bind in the Radius Arm suspension with a Lock-N-Load control arm. Allows up to 1.5" of movement under extreme forces that allows your suspension to really flex. Removes strain on bushings and brackets and provides the safety of 4 attachment points to your front axle without loosing any of the flex. Lock it for street use to stiffen up the handling and unlock it for massive articulation.

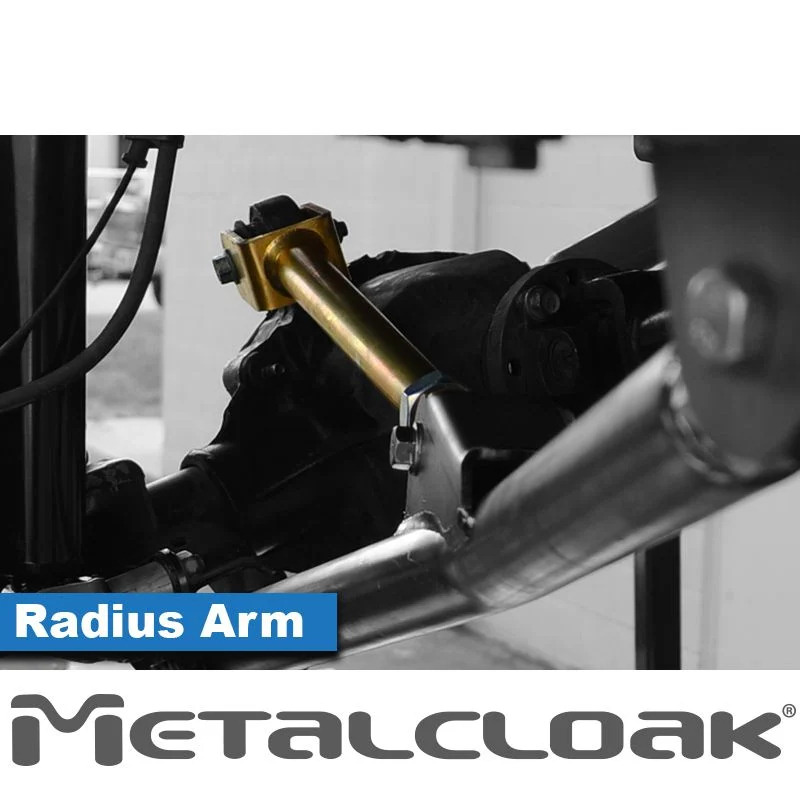

The Upper Front Radius Adjustable Control Arm is precision engineered to work with the Lock-N-Load radius arm suspension. The radius control arm is made with strong 1.25" DOM tubing for durability, allows for maximum up and down wheel travel while keeping the pinion angle in check, and has unparallel on road handling characteristics that can not be denied.

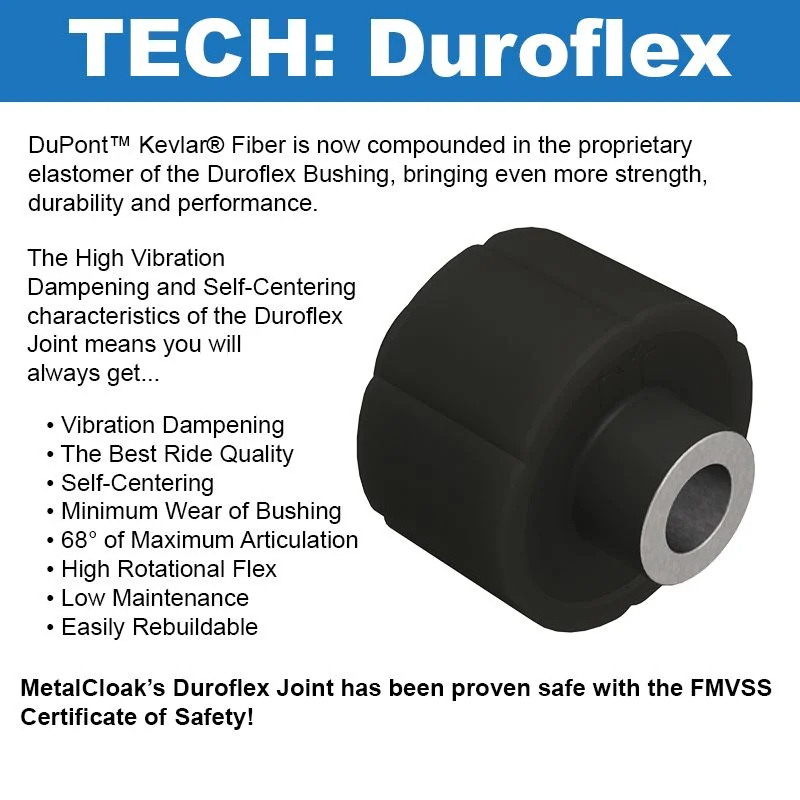

Fitted with Duroflex Joints, the only vulcanized elastomer, self-centering joint enhanced with DuPont™ Kevlar® fiber - providing incredible durability with more misalignment in the control arms and better vibration dampening than anything else available. Exclusive to MetalCloak (see detailed info in the main body).

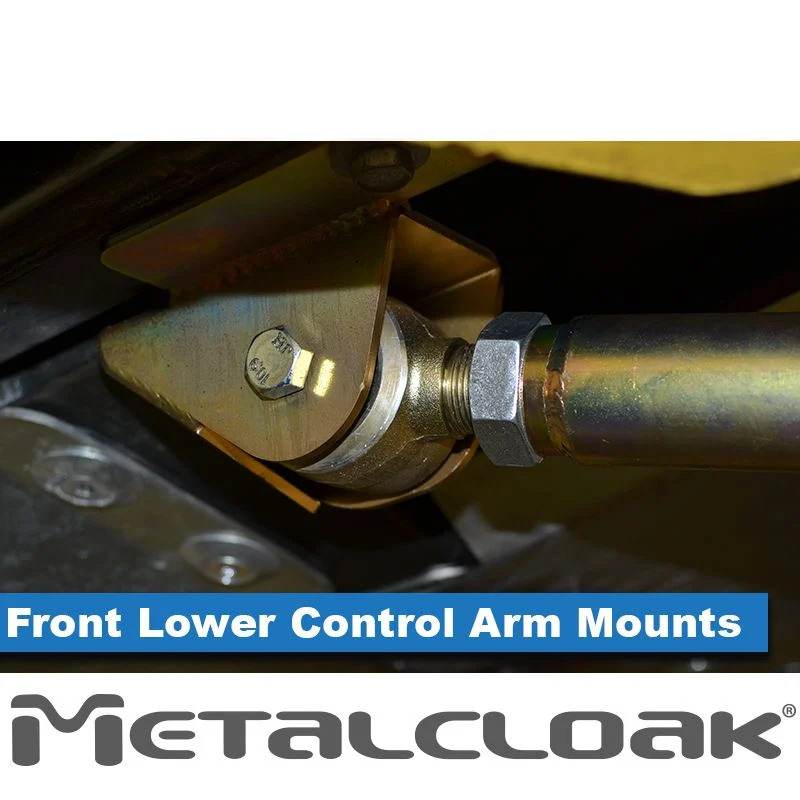

MetalCloak Front Long Arm Frame Mounts are used in replacement of the factory mounts when installing the front lower control arms for a long arm suspension. Fully welded and boxed for strength, the 1/4" steel brackets are low profile for clearance and are finished in gold zinc for a long lasting finish.

This system requires cutting off the factory front lower control arm brackets and is for the Rock Crawler that demands precision when it comes to wheelbase and pinon angles.

MetalCloak's Front Long Arm will feature our best high speed handling properties for on and off-road and the "Bolt-On" Front Long Arm System is made in the USA.

Note: Exhaust modification may be required on all 2007-2011 JKs to install this kit to clear the lower front control arm mounts.

Note: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
Jeep Lock-N-Load Radius Long-Arm Upgrade Kits

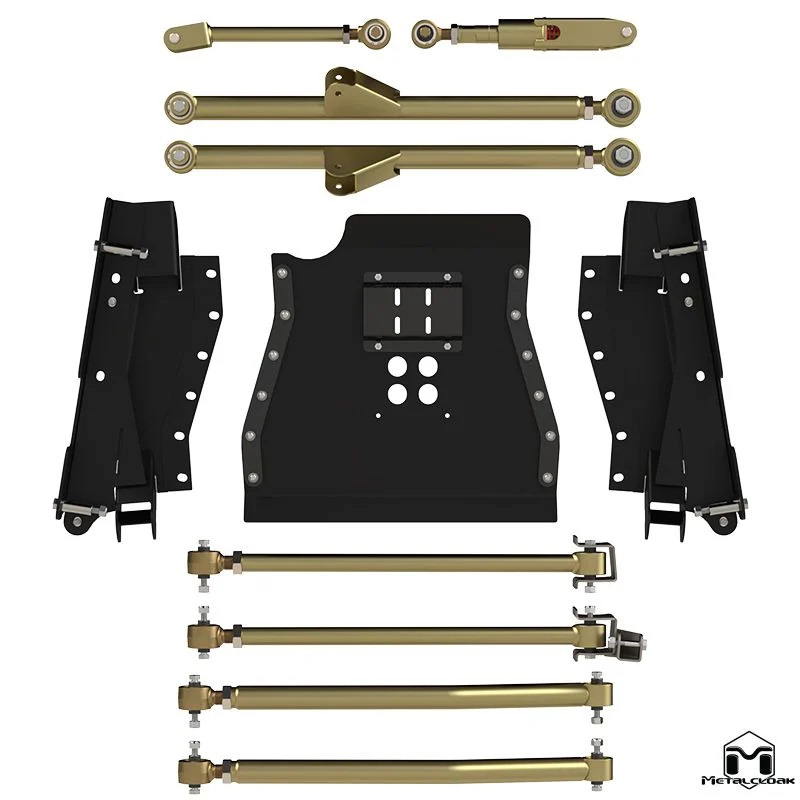

The Jeep Lock-N-Load Long Arm Upgrade Kit replaces previously installed control arms with MetalCloak's Patented Duroflex Long Arm set up. This is the only system that has bind-free front radius arms with the use of the Patented MetalCloak Lock-N-Load upper control arm. The 3 piece belly pan attaches control arms and protects the underside of the Jeep.

  • Front Lock-N-Load™ Radius Long Arm
  • High-Misalignment (NVH) Duroflex™ Control Arms
  • 3 Piece High Clearance belly pan
  • Made in the USA

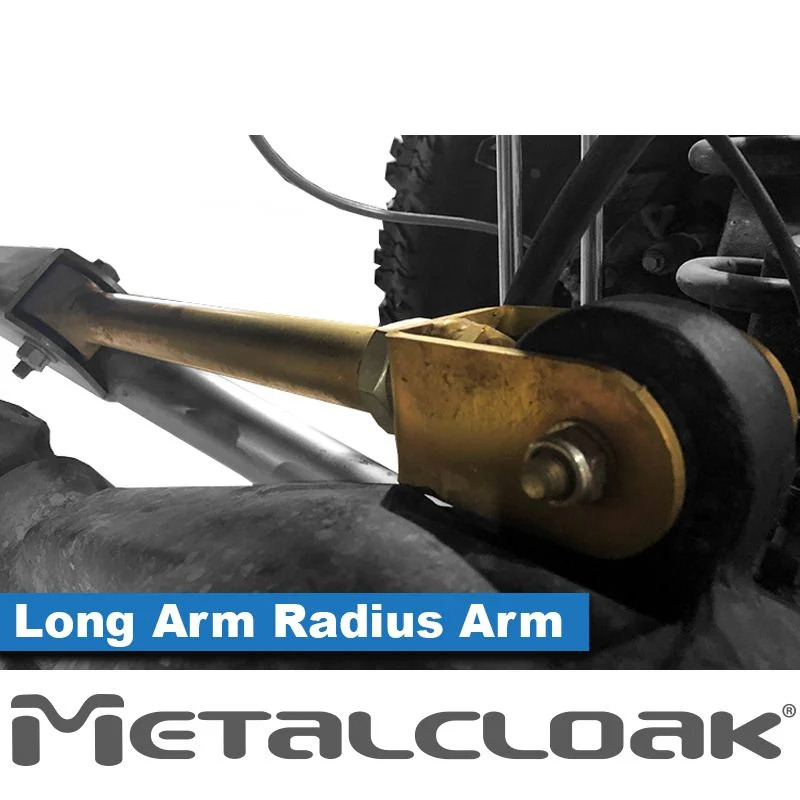

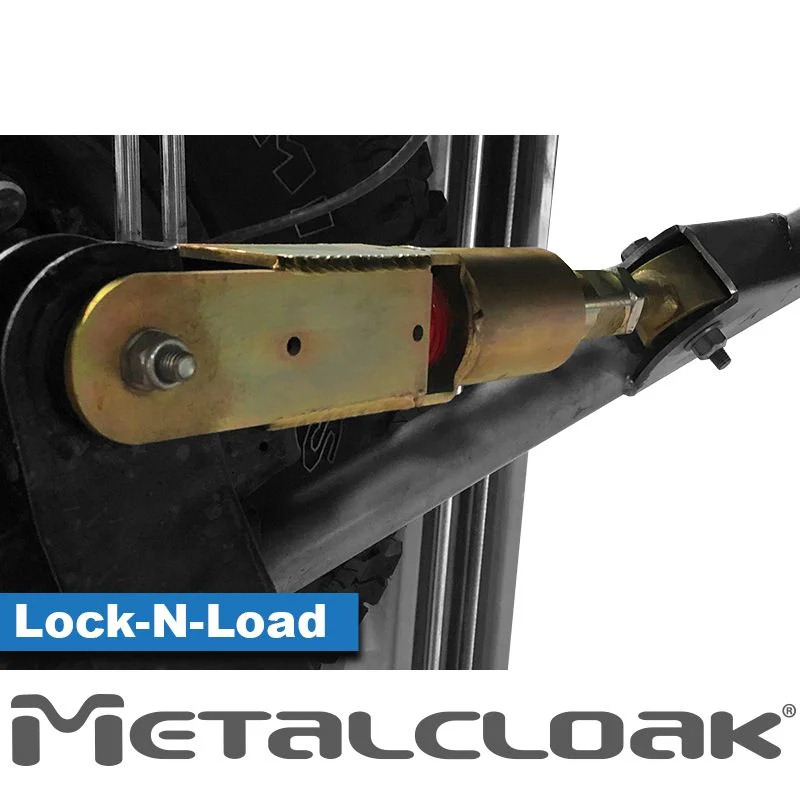

The Patented Lock-N-Load Radius Long Arm eliminates bushing bind and unleashes the full capabilities of the system without losing the safety of 4 contact points on the axle.

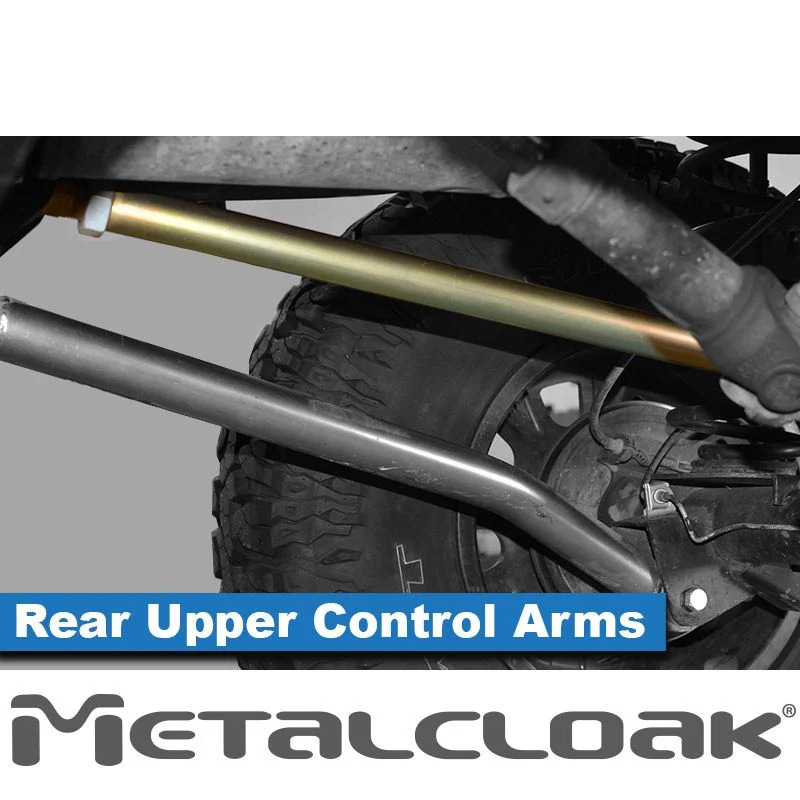

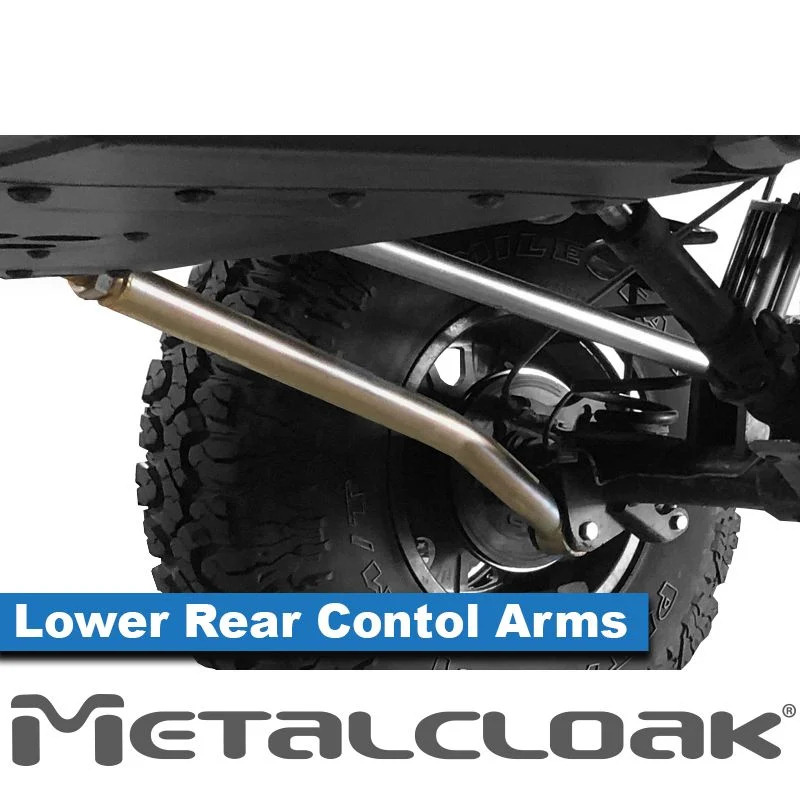

The revolutionary, DuPont™ Kevlar® fiber enhanced Duroflex™ Joint equipped control arms eliminate squeaks and clunks and have the best NVH properties available. Built strong from 2" x .25 wall DOM with clearance bends in the rear to minimize dragging.

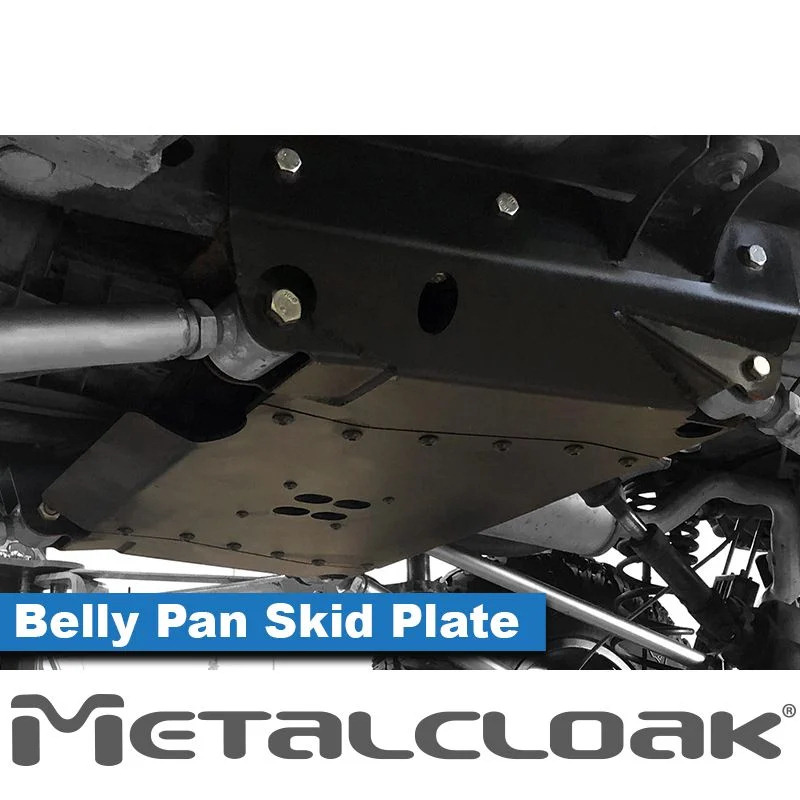

3 Piece Belly Pan is designed for abuse and engineered to be the best. Front and rear departure and approach angles, boat sided, solid design stiffens the chassis, clearance for stock or aftermarket transfer case, and the center section may be removed to allow servicing of protected components.

Every aspect of clearance has been taken into account with angles and skids built into the carefully developed components. Weld-on and bolt-on pieces transform the Jeep Wrangler into a well-mannered street driving machine and an all-out high-performance rock crawler for off-road.

MetalCloak components have been proven safe with the FMVSS certificate of safety configured with 37inch tires, full body armor and suspension lift.

Note: This Kit Requires Welding at the rear axle.

Note: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
MetalCloak Lock-N-Load Long Arm Suspension
*Prices may vary depending on truck model. Installation fees may apply.
